Model # 3158E-200

200 Watt Ergo Soldering Iron

3158E-200
Testimonials

"Now that I've used an American Beauty, I'll never use another Weller again!" Cleon W. in Imro, SC.

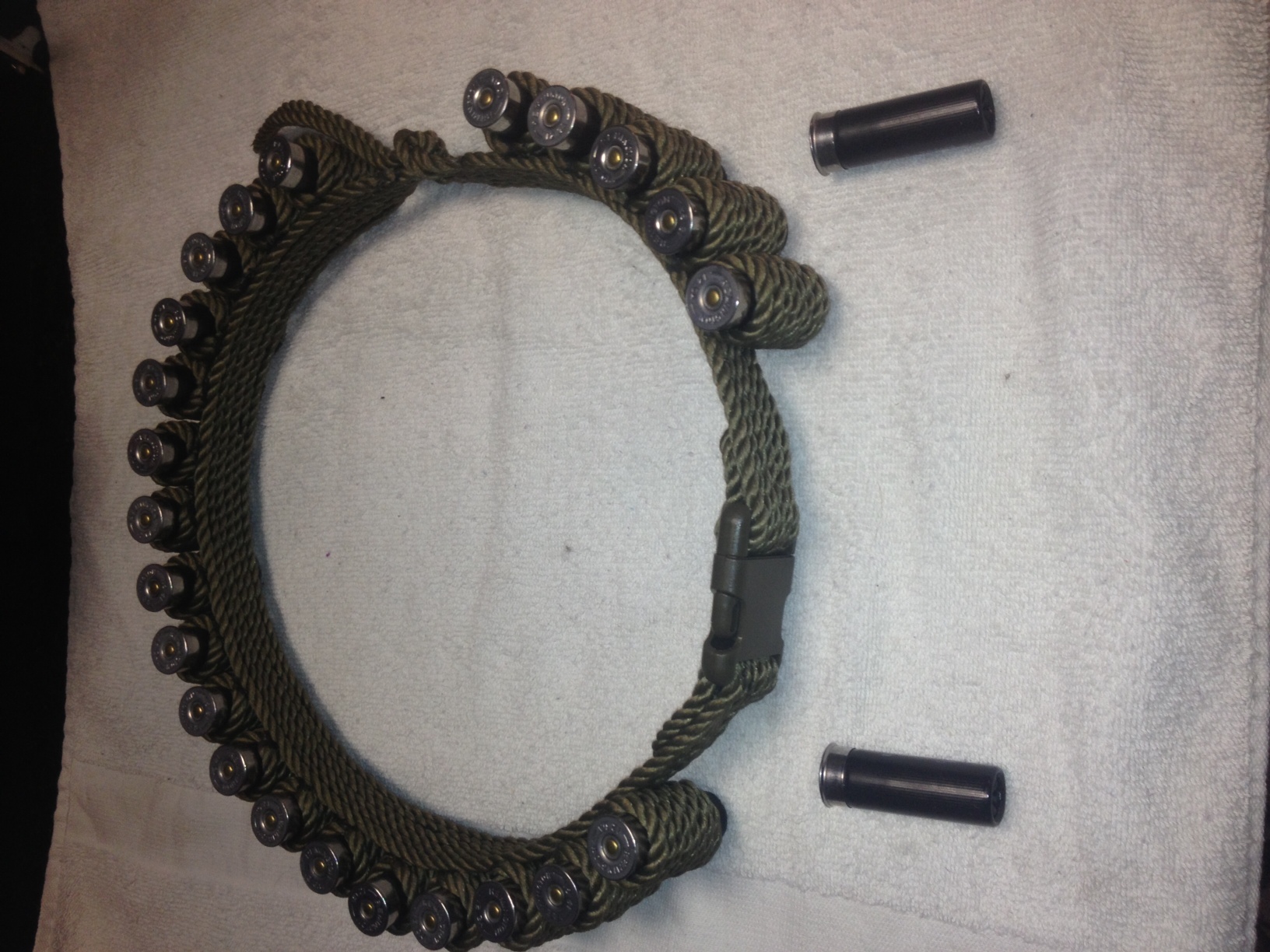

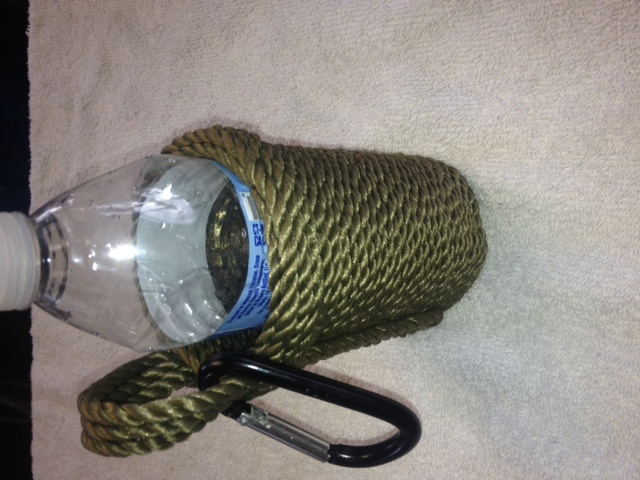

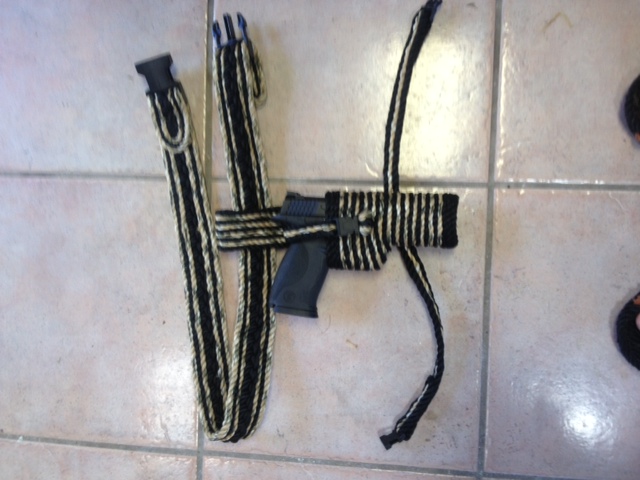

Cleon makes unique items (Gun Holster,Water Bottle Holder,Belt) from rope and uses American Beauty Irons to melt and fuse the rope.

$260.00
QTY.   add to cart    ADD TO CART
Product Overview
Reaching a maximum tip temperature of 1,000°F, the American Beauty 200 Watt Ergo Iron (Model 3158E-200) is an industrial-duty soldering iron especially designed for professionals who depend on soldering for their livelihoods. Using a traditional stick-style soldering iron frequently causes wrist stress as the soldering iron has to be held at an awkward angle. The nearly 90 degree angle of the ergo iron allows the operator to use the soldering iron from a comfortable position, enabling them to focus on their work instead of their discomfort. (Stand Included)


FEATURES AND BENEFITS

The near 90 degree angle in the soldering iron casing allows the user to operate the iron from an ergonomically comfortable position, reducing tension in the hand and wrist.

Ni-Chrome Compression Wound Heating Elements are proven to be the most reliable heating element for maintaining soldering temperature in production environments.

Paragon Iron-Clad Lead-Free Soldering Iron Tips consistently outperform and outlast ordinary soldering iron tips many times over. Plug-style tip design provides for superior heat transfer and easy cleaning.

Hardwood handle provides superior thermal and electrical insulating properties and durability. Modular construction allows for easy replacement of consumable parts allowing for tools to last for generations.



REPLACEMENT PARTS

The following products can be used as replacements for Model 3158E-200 featured on this page:

Model Product NamePrice
3919Replacement Handle/Cord set for Heavy-Duty Irons$28.00Add to Cart
3933Replacement Item_Set Screws$14.50Add to Cart
44DDiamond Style Soldering Tip$39.00Add to Cart
9275-200Replacement 200 Watt Compression-Wound Heating Element$86.00Add to Cart


ACCESSORIES

The following products can be used as Accessories for Model 3158E-200 featured on this page:

Model Product NamePrice
44CChisel Style Soldering Tip$39.00Add to Cart
44SScrewdriver Style Soldering Tip$39.00Add to Cart
CS-ABKITSoldering Iron Maintenance Kit for 1/4" thru 9/8" Irons$34.00Add to Cart
V3700Voltage Controller for Heavy-Duty Irons & Pots$169.00Add to Cart


SIMILAR PRODUCTS

The following products are related (similar model but different specifications, etc.) to Model 3158E-200 featured on this page:

Model Product NamePrice
3158XE-250250 Watt Heavy-Duty Ergo Iron$270.00Add to Cart


APPLICATIONS

Users of this product have stated that they use it for several jobs which include but are not limited to:
  1. Fabrication of counter tops out of sheet metal
  2. Soldering Leaded glass construction & Leaded glass lamp repair
  3. Soldering artisan projects, including Copper Art, up to large sizes
  4. Fabrication of miscellaneous parts
  5. Soldering filter screens at their seams
  6. Soldering chase top flashings


TECHNICAL SPECIFICATIONS

Standard Tip StyleDiamond
Wattage200 watts
AMP Draw< 2 Amp
Maximum Temperature1050 °F / 566°C
Stand included?Yes
Available in a 220-240 VAC?Yes, available upon request
Tip Diameter.625 in
Product Width4 in / 10.16 cm
Product Height4 in / 10.16 cm
Package Weight3.55 lbs / 1.61 kg
Country of OriginUS
Harmonization Code:8515.11.0000
RoHS CompliantYes
IEC 60335-1, Edition 5.1, 2013-12Yes
IEC 60335-2-45, Edition 3.2, 2012-01Yes
WEEE CompliantYes
CE CertifiedYes
Understanding Tip MeasurementsExplanation
Warranty PolicyDetails
User ManualUser Manual
Product Lgth16
C of C
