Model # 8055

Replacement Thermostat

Product Overview
American Beauty Solder pots are constructed to endure the worst that you can throw at them. A full array of replacement items are available so that you can extend the life of your solder pot by performing routine maintenance versus purchasing a whole new unit.

American Beauty solder pots regulate the temperature of their solder bath through an effecient and effective bi-metal thermostat. Through simplicity of design, we have virtually eliminated the need to ever throw out a solder pot.

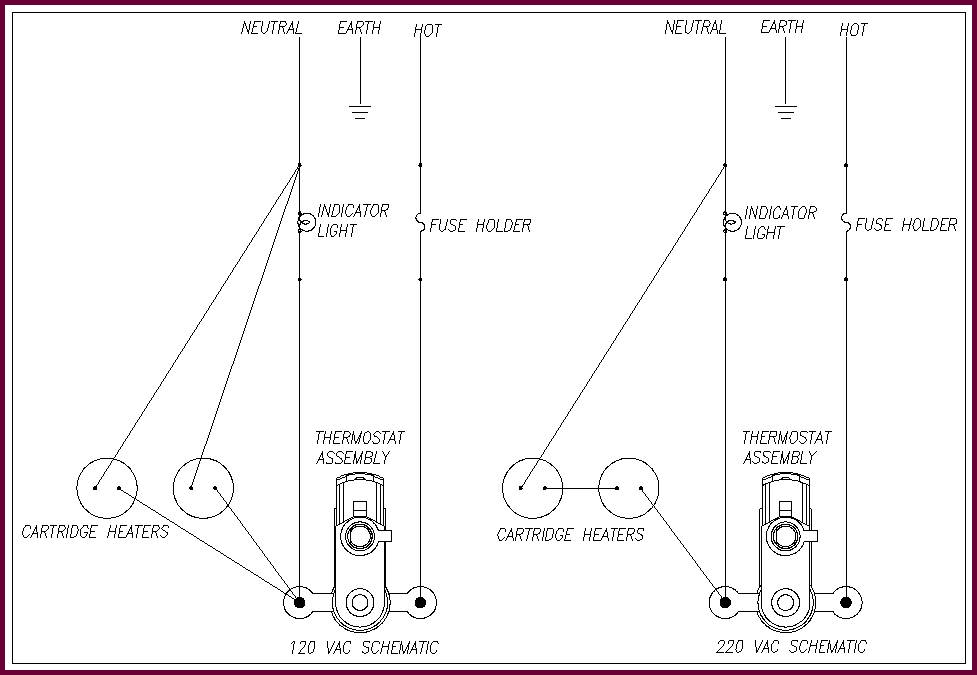

Follow this link to view our Solder Pot Wiring Schematic

QTY.   add to cart    ADD TO CART


Effective in controlling general temperature of American Beauty One Pound and Mid-Capacity solder pots.

Simple bi-metal design keeps pot running smoothly.

Replacing the Thermostat on your Solder Pot


Available in a 220-240 VAC?Yes, available upon request
Product Width2.50 in / 6.35 cm
Product Height4.125 in / 10.48 cm
Package Weight.15 lbs / 0.07 kg
Country of OriginUS
Harmonization Code:9032.10.0000
RoHS CompliantYes
WEEE CompliantYes
Warranty PolicyDetails
User ManualInstructions
Product Lgth3.00
