Model # 3112-60
60 Watt, 1/4" Pencil-Style Soldering Iron
Testimonials
|
$92.00
|
QTY.
ADD TO CART
|
Product Overview
The little guy that really packs a punch! Designed in the same fashion as our heavy-duty soldering irons, these pencil-style irons are certainly not your average hobby iron. Referred to as production-ready, these irons repeatedly perform hard soldering applications, day in and day out. The combination of intense heat and unmatched durability yields a pencil iron that can proudly be called an American Beauty and makes a versatile tool in any maintenance and repair operation. (Stand Included)
FEATURES AND BENEFITS
Ni-Chrome Compression Wound Heating Elements are proven to be the most reliable heating element for maintaining soldering temperature in production environments.
Paragon Iron-Clad Lead-Free Soldering Iron Tips Will consistently outperform and outlast ordinary soldering iron tips many times over. Plug-style tip design provides for superior heat transfer and easy cleaning.
Molded Nylon contoured handle provides excellent thermal and electrical insulating properties, for durability, comfort and balance.
Modular construction allows for easy replacement of consumable parts allowing for tools to last for generations.
Paragon Iron-Clad Lead-Free Soldering Iron Tips Will consistently outperform and outlast ordinary soldering iron tips many times over. Plug-style tip design provides for superior heat transfer and easy cleaning.
Molded Nylon contoured handle provides excellent thermal and electrical insulating properties, for durability, comfort and balance.
Modular construction allows for easy replacement of consumable parts allowing for tools to last for generations.
REPLACEMENT PARTS
The following products can be used as replacements for Model 3112-60 featured on this page:
ACCESSORIES
The following products can be used as Accessories for Model 3112-60 featured on this page:
SIMILAR PRODUCTS
The following products are related (similar model but different specifications, etc.) to Model 3112-60 featured on this page:
APPLICATIONS
Users of this product have stated that they use it for several jobs which include but are not limited to:
- Soldering in-field service calls
- Soldering conductor of neon light bulb to create hermetic seal

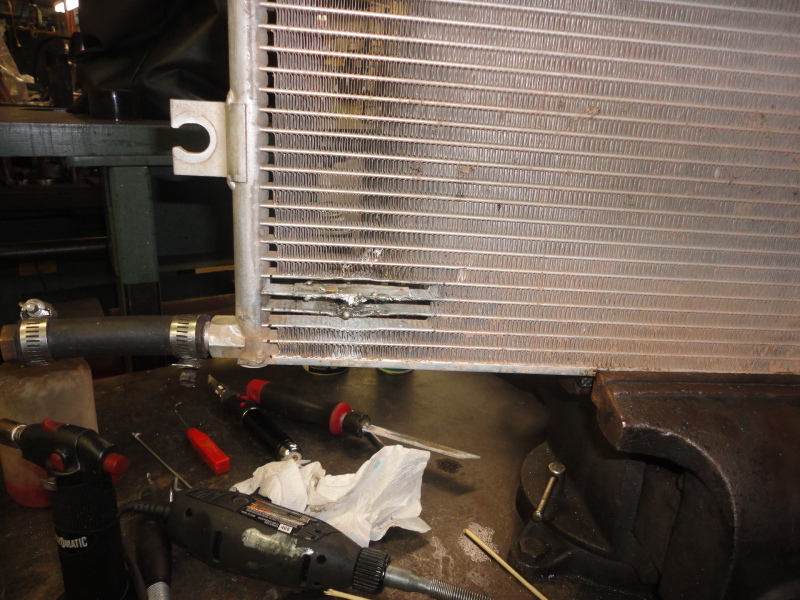

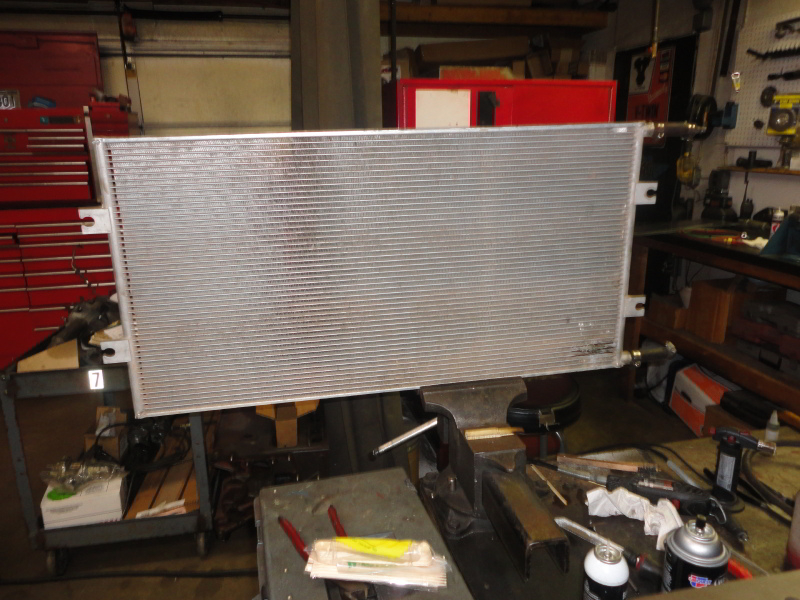

- Soldering wire to large copper area
- Soldering in the process of jewlery making
- Repairing electronic assembly
- Soldering audio cables
- Soldering electrical panel components
- Soldering wires to large copper plates
- Desoldering component leads for through hole PCB assembly

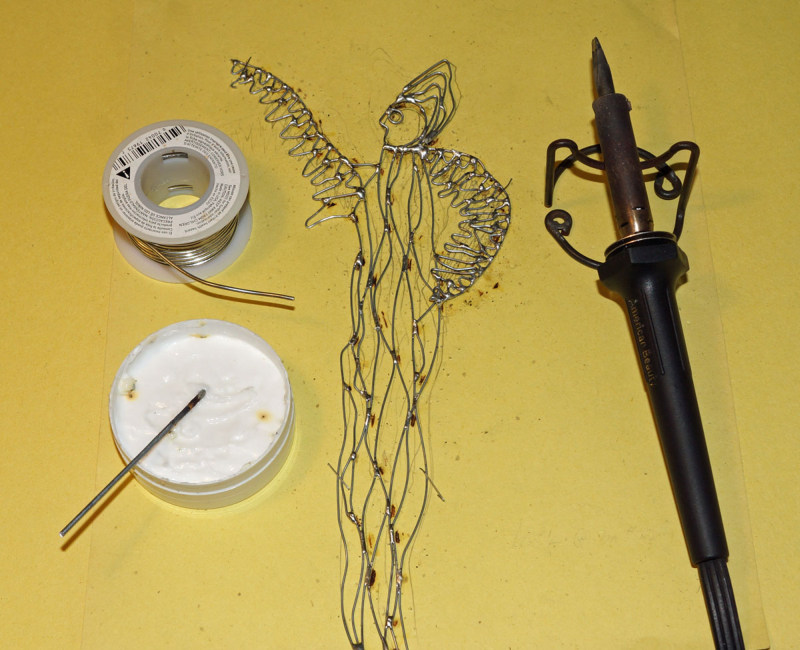

- Soldering wire sculpture, replacing my s-76 from around 1945
- Soldering stained glass art-work
- Soldering small lamp parts
- Repairing electrical testing equipment
Videos
Creating a hermetic seal on a neon bulb assembly
Proper soldering iron maintenance
TECHNICAL SPECIFICATIONS
| Standard Tip Style | Screwdriver |
| Wattage | 60 watts |
| AMP Draw | < 1 Amp |
| Connection Type | NEMA 5-15P |
| Maximum Temperature | 1150 °F / 621°C |
| Stand included? | Yes |
| Available in a 220-240 VAC? | Yes, available upon request |
| Tip Diameter | .25 in |
| Tip Length | 2.25 in / 5.72 cm |
| Product Length | 7.75 in / 19.69 cm |
| Product Width | 2.00 in / 5.08 cm |
| Product Height | 2.00 in / 5.08 cm |
| Product Weight | .55 lbs / 0.25 kg |
| Package Dimensions (Inches) | 12 by 2.25 by 2.25 |
| Package Weight | 1 lbs / 0.45 kg |
| Country of Origin | US |
| Harmonization Code: | 8515.11.0000 |
| Cage Code | 02105 |
| NSN # | 3439-00-141-8240 |
| RoHS Compliant | Yes |
| BS EN IEC 60335-1:2023+A11:2023 | Yes |
| BS EN 60335-2-45:2002+A11:2023 | Yes |
| WEEE Compliant | Yes |
| CE Certified | Yes |
| Understanding Tip Measurements | Explanation |
| Warranty Policy | Details |
| User Manual | User Manual |
